AFL++实战其八

练习8 - Adobe Reader

版本：Adobe Reader 9.5.1

漏洞：越界漏洞

---

下载你的目标

安装依赖：

sudo apt-get install libxml2:i386
sudo apt --fix-broken install

下载安装包：

wget http://ardownload.adobe.com/pub/adobe/reader/unix/9.x/9.5.1/enu/AdbeRdr9.5.1-1_i386linux_enu.deb
wget http://ftp.cz.debian.org/debian/pool/main/g/gdk-pixbuf-xlib/libgdk-pixbuf-xlib-2.0-0_2.40.2-2_i386.deb

安装：

sudo dpkg -i AdbeRdr9.5.1-1_i386linux_enu.deb
sudo dpkg -i libgdk-pixbuf-xlib-2.0-0_2.40.2-2_i386.deb

运行：

/opt/Adobe/Reader9/bin/acroread

这里需要同意协议。

---

下载语料库

wget https://digitalcorpora.s3.amazonaws.com/corpora/files/CC-MAIN-2021-31-PDF-UNTRUNCATED/zipfiles/0000-0999/0000.zip
x 0000.zip

复制小于 2k 大小的 pdf 作为种子：

find ./0000 -type f -name "*.pdf" -size -2048c -exec cp {} ./seeds/ \;

---

开始模糊

注意/opt/Adobe/Reader9/bin/acroread实际上是一个 shell 脚本，真正的启动二进制是/opt/Adobe/Reader9/Reader/intellinux/bin/acroread。

而 afl-fuzz 是不能与脚本进行交互的。

你需要编译 afl-qemu-trace 的 i386 直到输出如下：

╰─ afl-qemu-trace --help | head -1
usage: qemu-i386 [options] program [arguments...]

所以我们需要手动设置 arcoread 所需的环境变量：

ACRO_INSTALL_DIR=/opt/Adobe/Reader9/Reader \
ACRO_CONFIG=intellinux \
LD_LIBRARY_PATH=$LD_LIBRARY_PATH:'/opt/Adobe/Reader9/Reader/intellinux/lib' \
xvfb-run -a afl-fuzz -Q -i ./seeds -o ./out -t 2000 -- \
/opt/Adobe/Reader9/Reader/intellinux/bin/acroread -toPostScript @@

持久化

安装 valgrind 和 kcachegrind 以获得分析报告：

sudo apt-get install valgrind
sudo apt-get install kcachegrind

生成报告：

ACRO_INSTALL_DIR=/opt/Adobe/Reader9/Reader ACRO_CONFIG=intellinux LD_LIBRARY_PATH=$LD_LIBRARY_PATH:'/opt/Adobe/Reader9/Reader/intellinux/lib' valgrind --tool=callgrind /opt/Adobe/Reader9/Reader/intellinux/bin/acroread -toPostScript [samplePDF]

打开软件：

kcachegrind

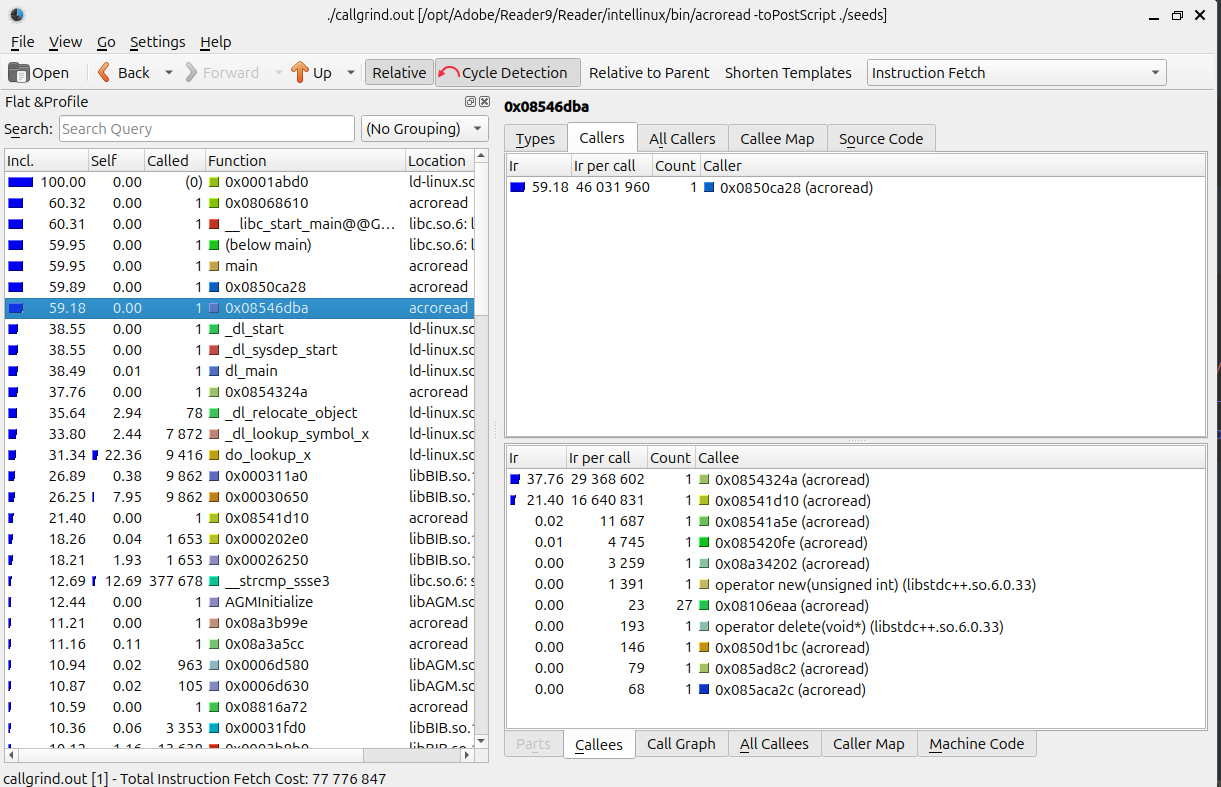

可见：

我们去 0x08546dba作为持久化点。该表默认自上而下为调用链，我们要寻找的是 incl. 值高且 self 值低的函数地址。

终极快照持久化：

╰─ export AFL_QEMU_SNAPSHOT=0x08546dba
export AFL_QEMU_PERSISTENT_EXITS=1    # 拦截 exit() 调用，强制跳回快照点
export AFL_QEMU_PERSISTENT_CNT=500    # 设置循环 500 次后刷新，增加稳定性

ACRO_INSTALL_DIR=/opt/Adobe/Reader9/Reader \
ACRO_CONFIG=intellinux \
LD_LIBRARY_PATH=$LD_LIBRARY_PATH:'/opt/Adobe/Reader9/Reader/intellinux/lib' \
xvfb-run -a afl-fuzz -Q -i ./seeds -o ./out -t 2000 -- \
/opt/Adobe/Reader9/Reader/intellinux/bin/acroread -toPostScript @@

 AFL ++4.41a {default} (.../Reader9/Reader/intellinux/bin/acroread) [explore]
┌─ process timing ────────────────────────────────────┬─ overall results ────┐
│        run time : 0 days, 0 hrs, 20 min, 59 sec     │  cycles done : 0     │
│   last new find : 0 days, 0 hrs, 0 min, 38 sec      │ corpus count : 728   │
│last saved crash : 0 days, 0 hrs, 11 min, 17 sec     │saved crashes : 2     │
│ last saved hang : none seen yet                     │  saved hangs : 0     │
├─ cycle progress ─────────────────────┬─ map coverage┴──────────────────────┤
│  now processing : 2.1 (0.3%)         │    map density : 40.48% / 48.54%    │
│  runs timed out : 1 (0.14%)          │ count coverage : 2.61 bits/tuple    │
├─ stage progress ─────────────────────┼─ findings in depth ─────────────────┤
│  now trying : trim 32/32             │ favored items : 123 (16.90%)        │
│ stage execs : 23/43 (53.49%)         │  new edges on : 163 (22.39%)        │
│ total execs : 9557                   │ total crashes : 2 (2 saved)         │
│  exec speed : 0.00/sec (zzzz...)     │  total tmouts : 0 (0 saved)         │
├─ fuzzing strategy yields ────────────┴─────────────┬─ item geometry ───────┤
│   bit flips : 0/0, 0/0, 0/0                        │    levels : 2         │
│  byte flips : 0/0, 0/0, 0/0                        │   pending : 726       │
│ arithmetics : 0/0, 0/0, 0/0                        │  pend fav : 123       │
│  known ints : 0/0, 0/0, 0/0                        │ own finds : 723       │
│  dictionary : 0/0, 0/0, 0/0, 0/0                   │  imported : 0         │
│havoc/splice : 720/1548, 0/0                        │ stability : 97.64%    │
│py/custom/rq : unused, unused, unused, unused       ├───────────────────────┘
│    trim/eff : 79.80%/2092, n/a                     │          [cpu000:175%]
└─ strategy: explore ────────── state: in progress ──┘^C

+++ Testing aborted by user +++
[*] Writing ./out/default/fastresume.bin ...
[+] fastresume.bin successfully written with 1340384 bytes.
[+] We're done here. Have a nice day!

---

诊断

AFL_USE_QASAN=1 ACRO_INSTALL_DIR=/opt/Adobe/Reader9/Reader \
ACRO_CONFIG=intellinux \
LD_LIBRARY_PATH=$LD_LIBRARY_PATH:'/opt/Adobe/Reader9/Reader/intellinux/lib' \
/usr/local/bin/afl-qemu-trace -- /opt/Adobe/Reader9/Reader/intellinux/bin/acroread -toPostScript ./out/default/crashes/id:000001,sig:11,src:000000,time:581793,execs:3621,op:havoc,rep:3

使用这样的命令可以让你看到开启了地址净化器一样的效果，你可以清晰的看到调用链。

…

@^@

….
